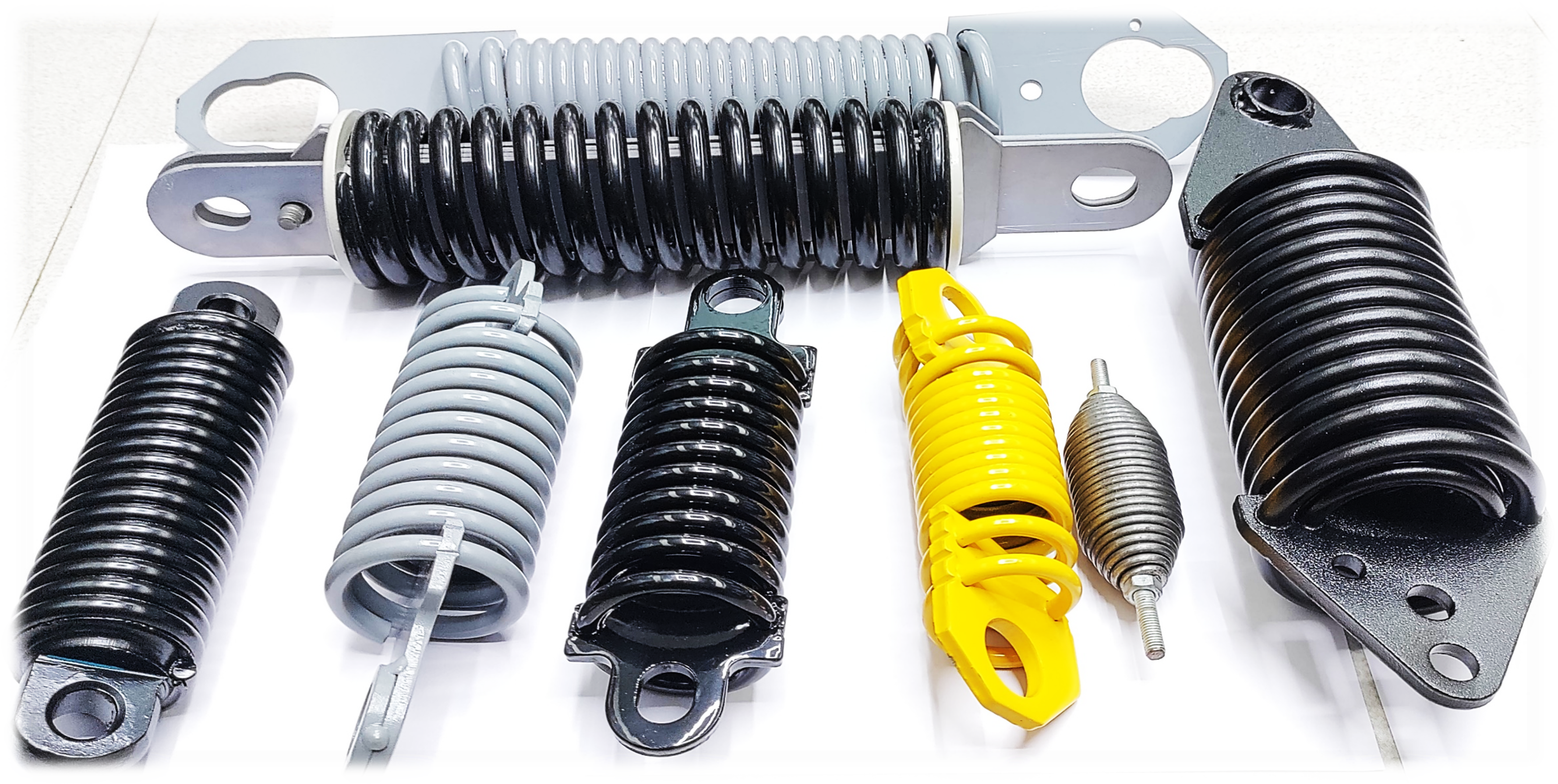

Spring Assemblies
In the context of electrical breakers, spring assemblies play a critical role in ensuring reliable operation. These assemblies utilize the energy stored in springs to perform essential functions within circuit breakers.
We produce many assemblies for automotive and switchgear industries.
Types of Spring Assemblies in Electrical Breakers
1. Closing Spring Assemblies:
• Purpose: Closing springs provide the force needed to close the circuit breaker contacts.
• Operation: When the breaker needs to close (e.g., after a trip), the energy stored in the closing spring is released, driving the contacts together.
• Critical Component: Properly functioning closing springs are essential for reliable breaker operation during switching events.
2. Tripping Spring Assemblies:
• Purpose: Tripping springs are responsible for opening the circuit breaker contacts during fault conditions or manual trips.
• Operation: When a fault occurs or an operator initiates a trip, the energy stored in the tripping spring is released, rapidly separating the contacts.
• Safety Feature: Tripping springs ensure quick disconnection to protect the electrical system.
Applications Across Electrical Systems
Spring assemblies are integral to various types of electrical breakers:
• Air Circuit Breakers (ACBs): ACBs use spring assemblies for both closing and tripping operations.
• Vacuum Circuit Breakers (VCBs): VCBs rely on spring assemblies to ensure rapid contact separation in a vacuum environment.
• High-Voltage Circuit Breakers: Even in high-voltage applications, spring assemblies play a crucial role in maintaining reliable switching.
Advantages of Well-Designed Spring Assemblies
1. Predictable Performance: Properly calibrated springs ensure consistent breaker operation.
2. Fast Response: Spring energy allows for rapid contact movement during fault conditions.
3. Maintenance Ease: Regular inspection and maintenance of spring assemblies ensure continued reliability.
Spring assemblies are the hidden force behind the seamless operation of electrical breakers. At AccuTech Springs, we specialize in designing and manufacturing reliable spring assemblies tailored to breaker specifications.
